Reynolds A-Type 4

Reynolds A-Type 4

SKU: Atype4KIT
£799.00Price

The Reynolds A-Type 4 is a four-capsule tetrahedral A-Format ambisonic microphone array, representing the culmination of years of product development and testing. The mic and cabling comes bundled with a state of the art A-Format to B-Format VST plugin designed by the amazing team at Atmoky.



Each mic is lovingly built by hand by Jack Reynolds in Hackney, East London.



The mic array itself is made of four closely matched 14mm cardioid electret capsules with 78dB signal to noise ratio. Low noise floor is an extremely important feature for nature recording or in situations where the background room tone needs to be clearly audible. In theory adding four mic capsules should result in 6dB better signal to noise ratio giving the A-Type4 a self noise of 10dBA. Max SPL is 127dB and the sensitivity is -21dB so lots of gain is generally not required when recording even the quietest sources. The capsules also behave well in a range of conditions from cold, wet overnight recordings to humid jungles and hot dry deserts.
The capsule mount is seated on Sorbothane pads, which absorb vibration and isolate the capsules. The mic is wired internally with aerospace spec silver-plated, Teflon insulated wire.

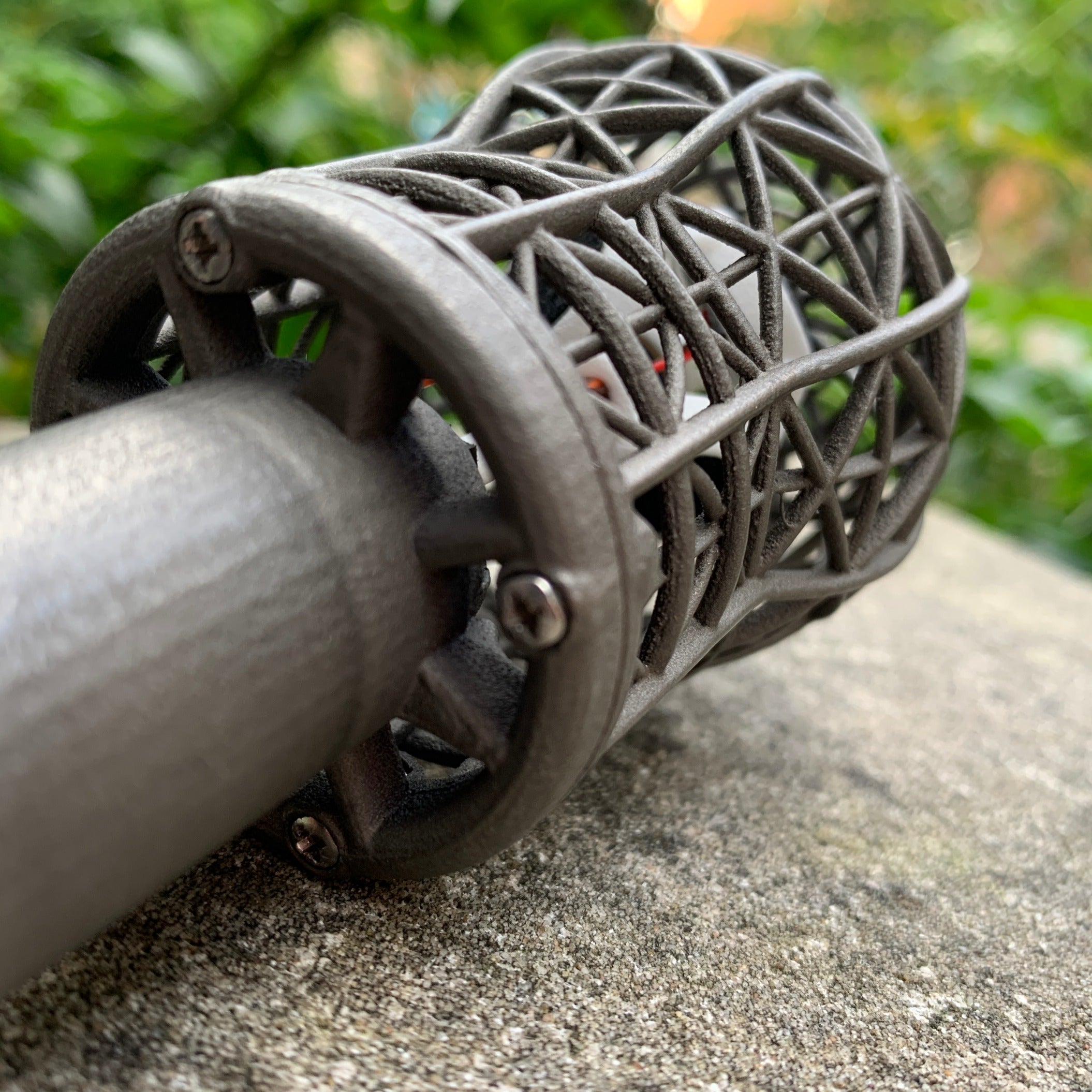

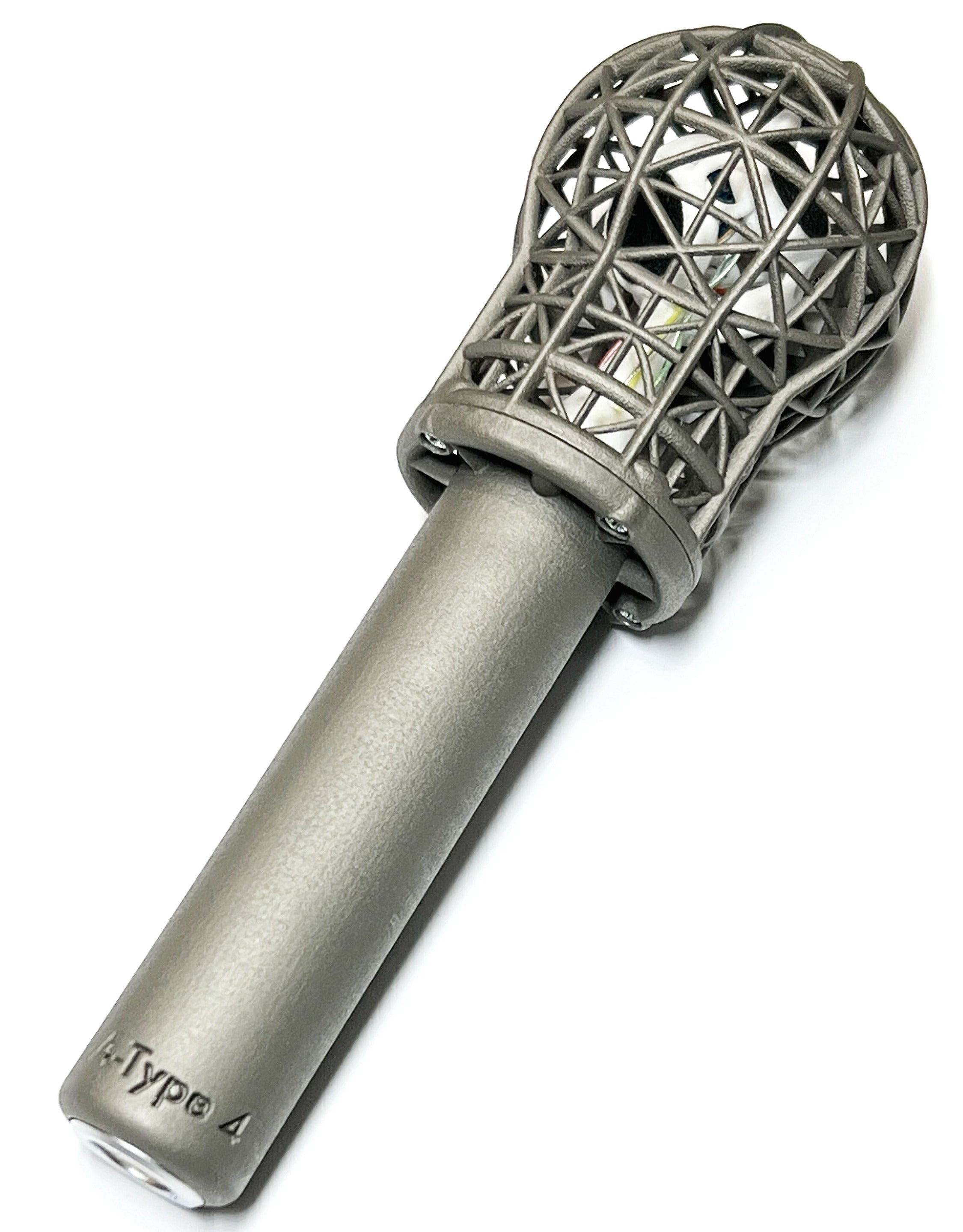

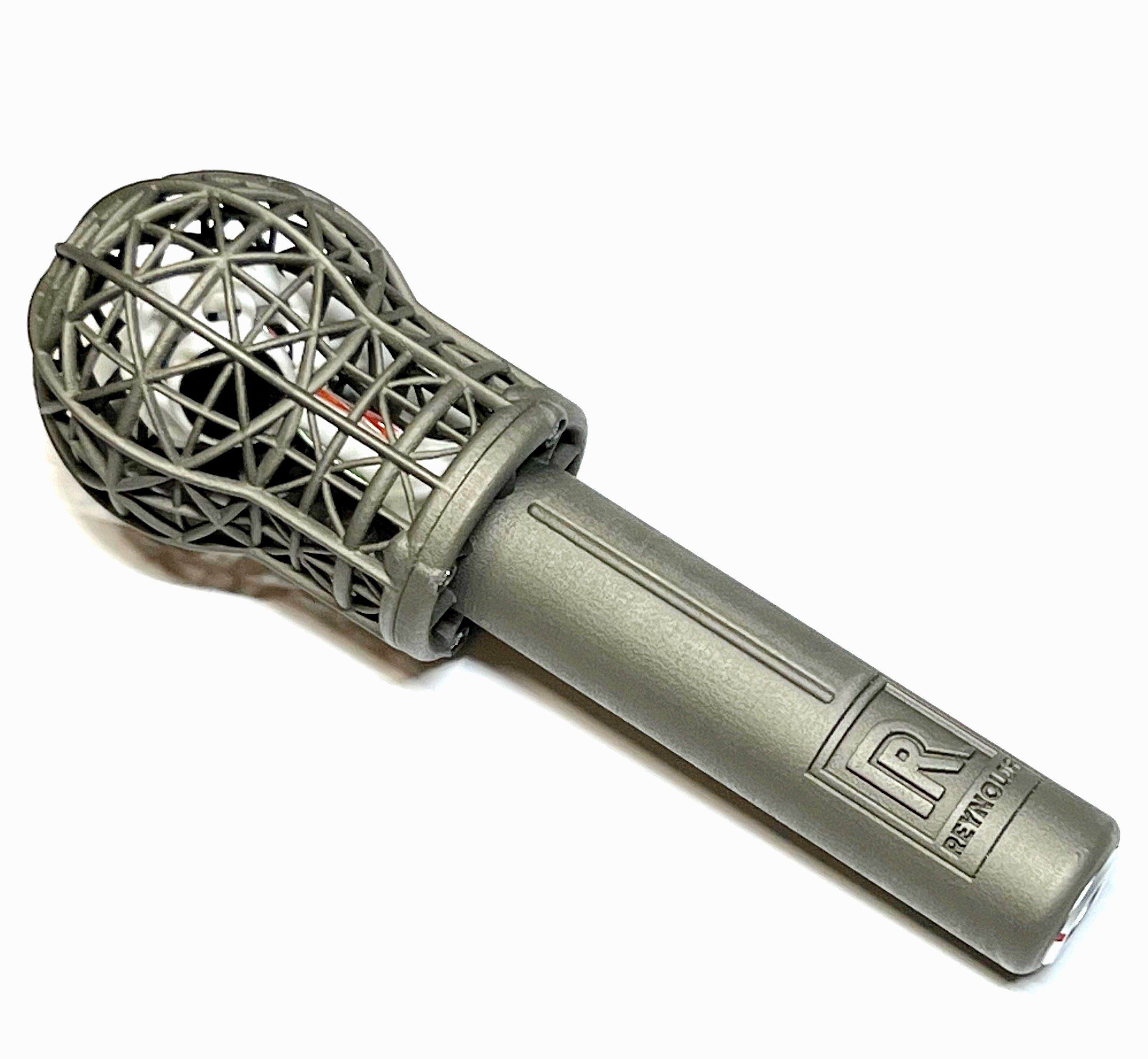

The mic headbasket and body are made in London from SLS 3D-printed Nylon, which has a number of benefits including being incredibly light weight (the mic weighs just 75 grams), perfect for stuffing in your backpack, and also low susceptibilty to condensation, since the plastic body doesn't get as 'cold' as a metal bodied microphone. The SLS (selective laser sintering) process produces hardly any waste material and the mics are made with with the lowest possible  environmental impact.



The mic body and grille are nickel coated for electrical shielding and to give a hard wearing surface and the light weight nylon construction also means the mic can be dropped from any height without damage.

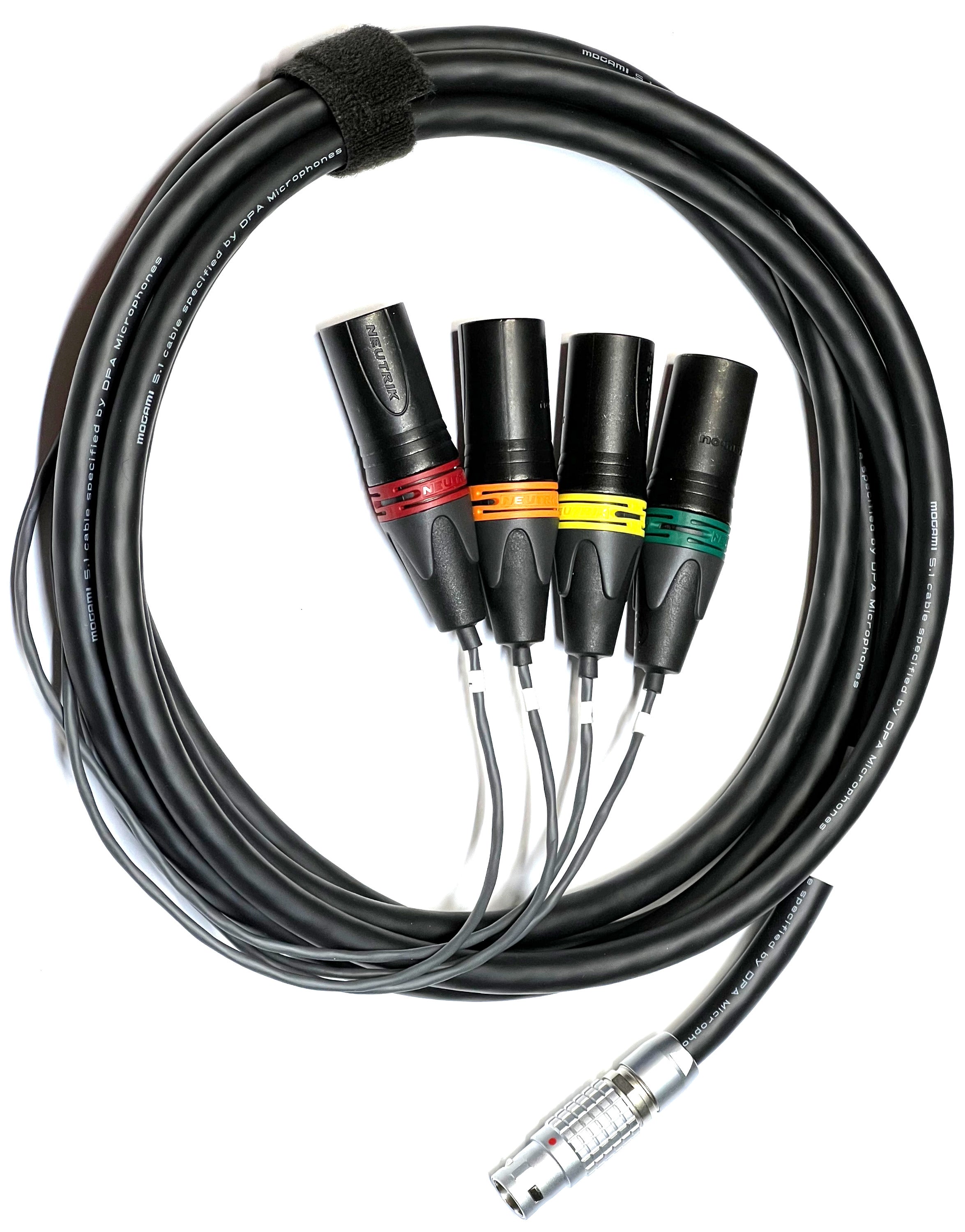

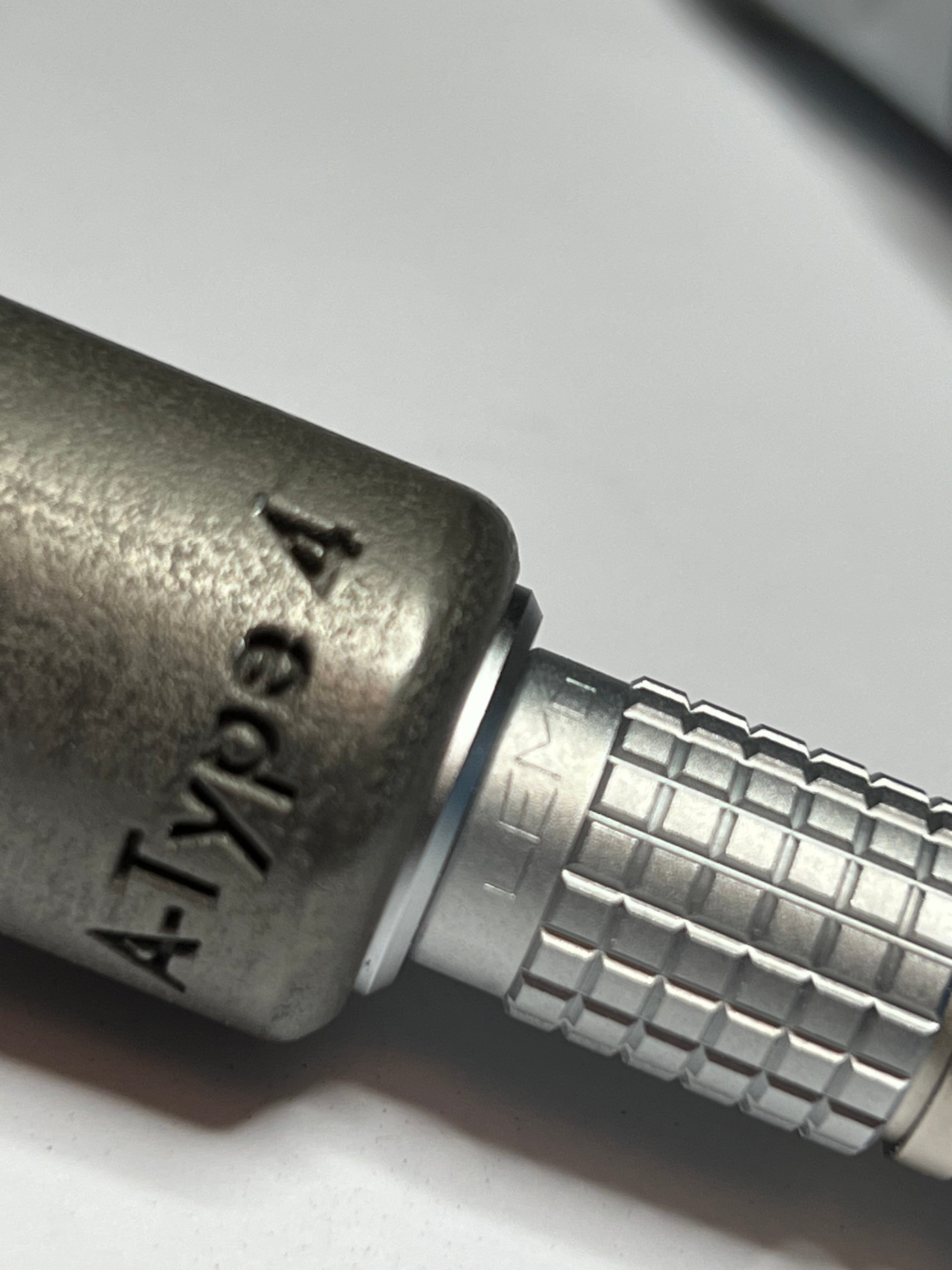

The 3m length cable included in the kit is made to the highest ISO standards by LEMO in West Sussex using Mogami 5.1 cable, terminated with an extremely high quality Lemo 2B plug, which mates with a LEMO 2B 8-pin socket on the mic body.

LEMO connectors are found everywhere the best is required, from the International Space Station to the most expensive movie cameras.

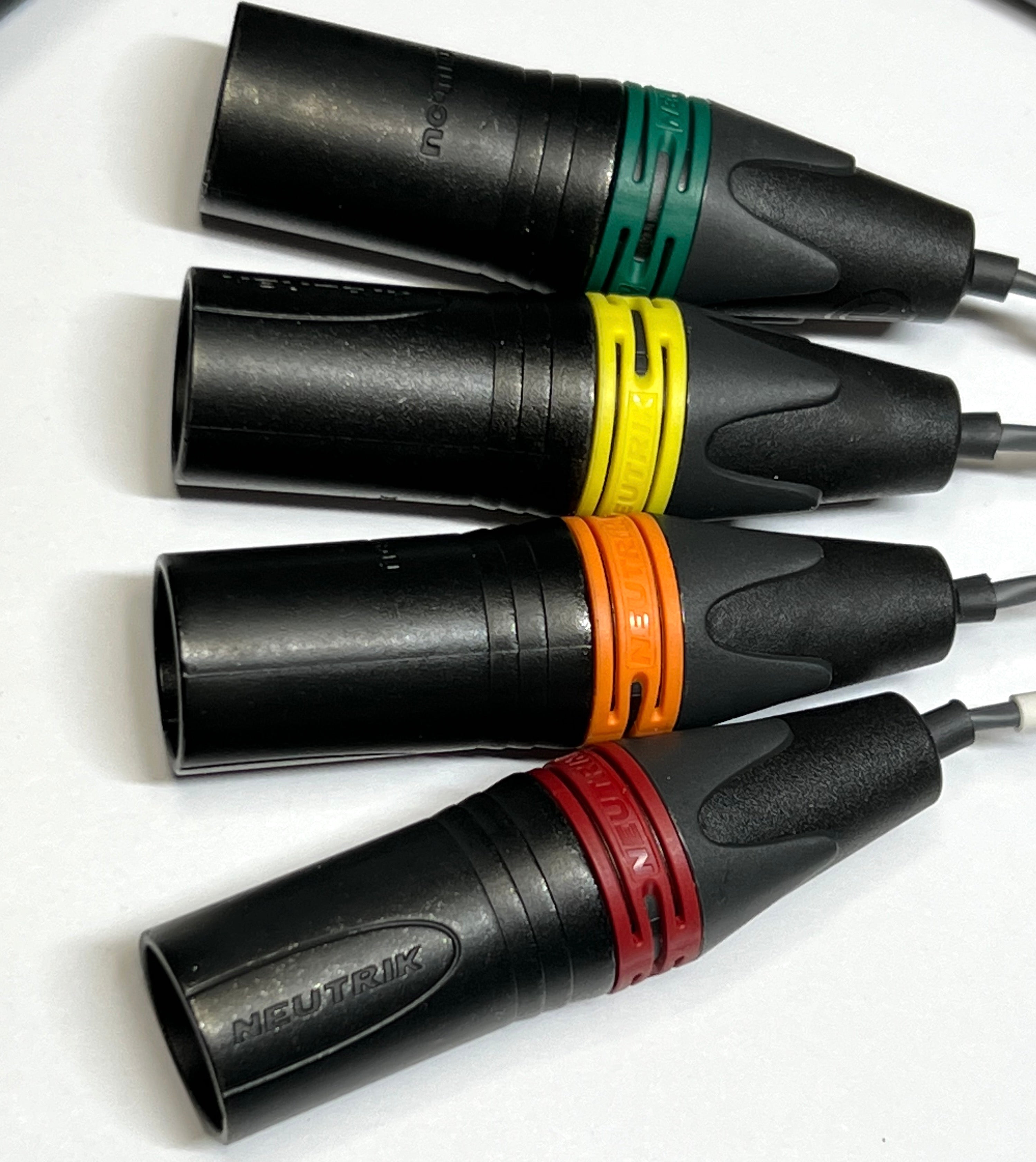

The tails at the preamp end of the cable are terminated with colour coded Neutrik XX 3pin XLRs with a built in circuit providing a fully electronically balanced low impedance output, giving the mic a high sensitivity and ability to drive long cable runs with no losses.



The final and perhaps most important part of the kit is the inclusion of a ground-breaking custom made VST plugin custom designed by Atmoky, which converts from the raw A-Format signals recorded directly from the mic, into B-Format ambisonics, for use in virtual reality, 360 video or as a spherical audio storage format that can be decoded to binaural or a wide range of channel based output formats.



The plugin includes settings to compensate for the coloration caused by the optional Rycote BBG windshield, plus additional controls to compensate for high frequency loss when using the Rycote Windjammer fur in higher wind conditions. Finally there is an optional low boost below 40Hz and an 'air' control to match the response to the Neumann KU100 diffuse field EQ.



The overall design is intended to be as rugged and reliable as possible but also to deliver the quietest most detailed sound at the lowest possible price point with no compromise on component choices. We don't sell through distributors or retailers, which keeps the price low and also means you can contact the designer and builder of each microphone directly with any queries or questions.



The A-Type 4 evolved out of conversations and field tests with leading sound recordists, collaboration with cutting edge spatial audio software developers and microphone component suppliers  and I am very proud to finally offer this finished product for sale.



If you want to hear the results of A-Type 4 recordings please look at Axel Drioli's work or his immersive field recording library

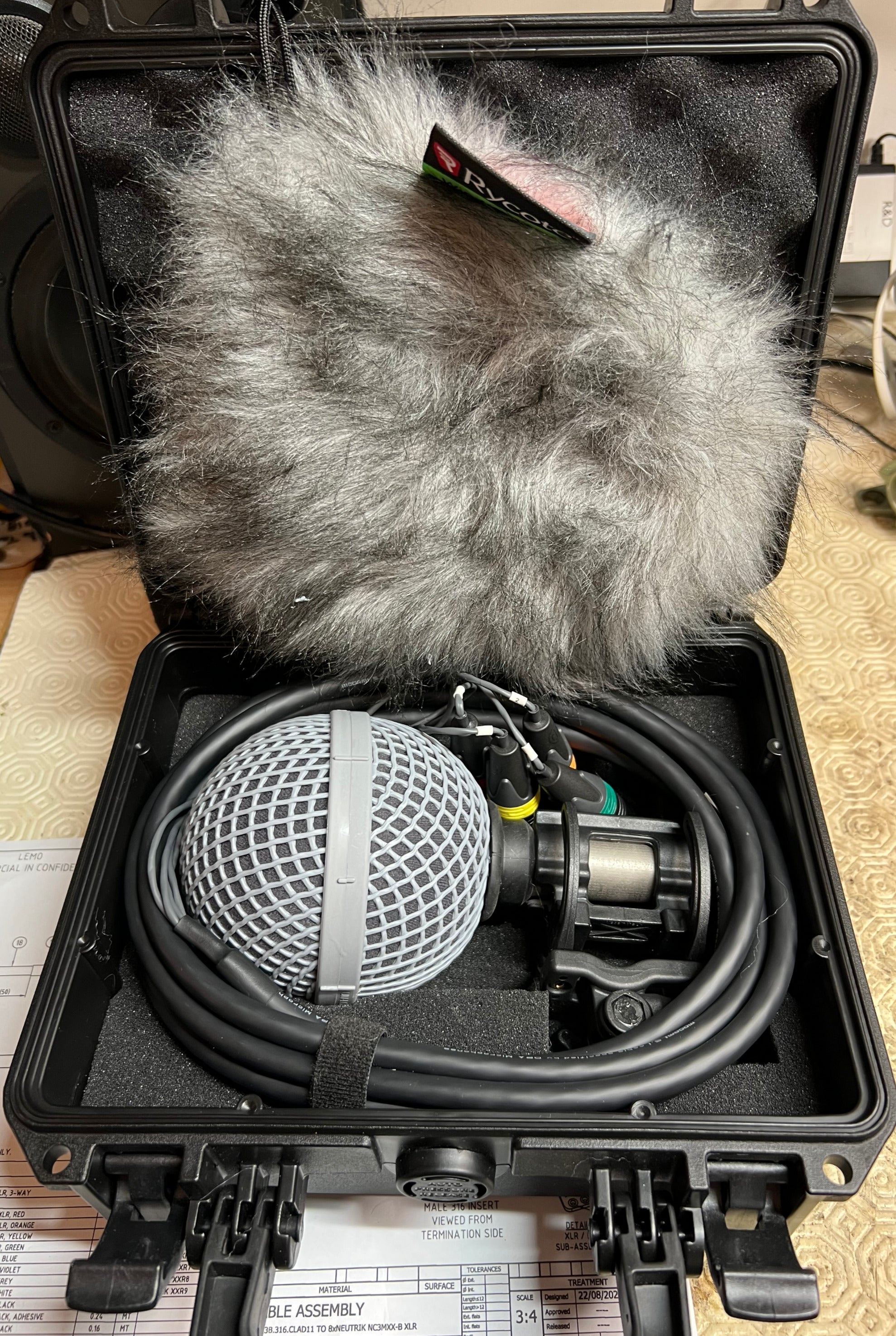

An optional upgrade bundle includes accessories by Rycote and a rugged waterproof plastic flightcase:

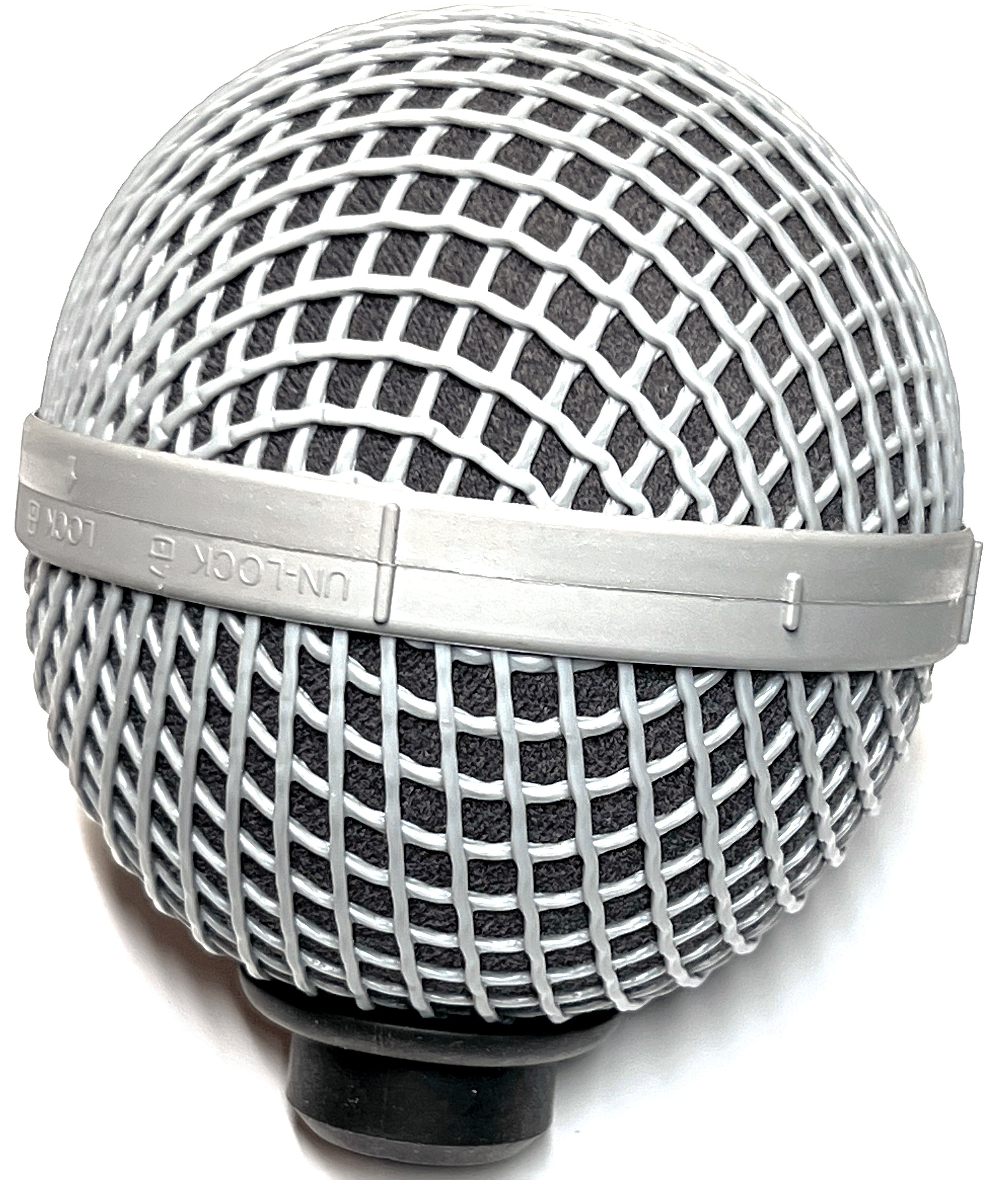

  • A custom-designed Rycote BBG windshield, which seats the mic array perfectly in the centre of the ball optimising the effectiveness of the shield. The BBG also provides protection for the microphone when in transit or out in the field.

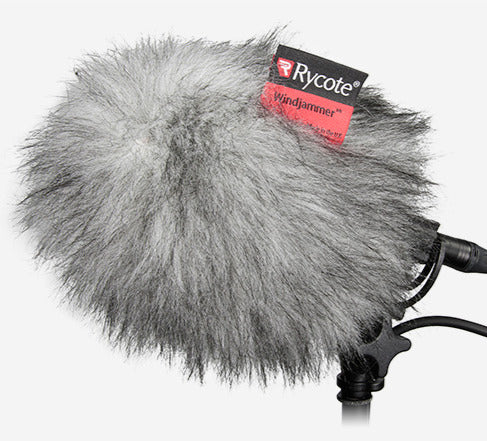

  • A Rycote BBG Windjammer fur windshield for use in higher wind conditions.
  • A Rycote INV7HG shockmount with adaptors for various mic stand threads.
  • A waterproof rugged plastic flightcase with foam inserts



The Atmoky VST will be shared via email shortly after purchase

  • Terms and conditions

  • Encoder VST Plugin License Agreement

    Reynolds A Format to B Format Encoder VST EULA

    By making a purchase of an A-Type4 microphone you agreeing to this EULA. The Plugin will be shared via email after purchase is complete

  • Technical Specifications

    • Four Channel Phantom powered, pre-polarized condenser microphone
    • Capsule signal to noise ratio: 78dB
    • Overall theoretical self noise (W Channel): 11dBA
    • Sensitivity: -21dB at 1kHz (±3 dB)
    • Max SPL: 127dBSPL
    • Output impedance: 30-50 Ohms
    • Output: XLR-3M balanced, transformer-less, floating
    • Power consumption ~3mA per pin
    • Weight: 85g

    Download Spec Sheet

  • Limited lifetime warranty
